Description
ESBE 36552200 Screw Connection Set for Externally Threaded Valves
This is a connection kit with an external thread size R 3/4″ designed to be used on valves with an external thread size G 1″. One check valve included. 3 connections/package.
Box Contents:
- Three of each connection pieces
- Nuts
- Gaskets
Suitable Valves:
The connection kit series KTD200 and KTD300 may most easily be fitted with ESBE thermostatic control units:
- Series VTS522, 552
- Series VTA332, 532
- Series VTA362, 562
- Series VTA322, 522
- Series VTA352, 552
- Series VTA372, 572
- Series VMC312

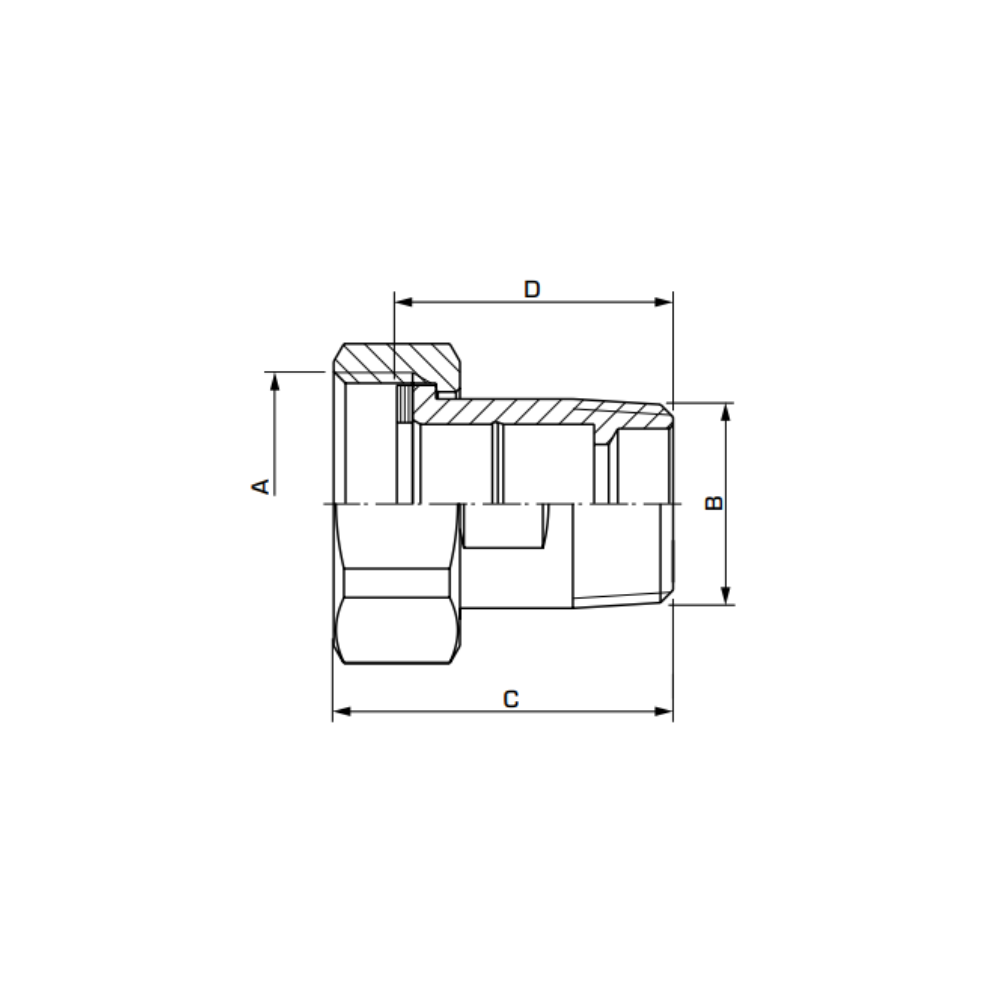

Technical Specifications:
| Reference | KTD212 |
| Connection A | G 1″ |
| Connection B | R 3/4″ |
| C (mm) | 43 |
| D (mm) | 35 |
