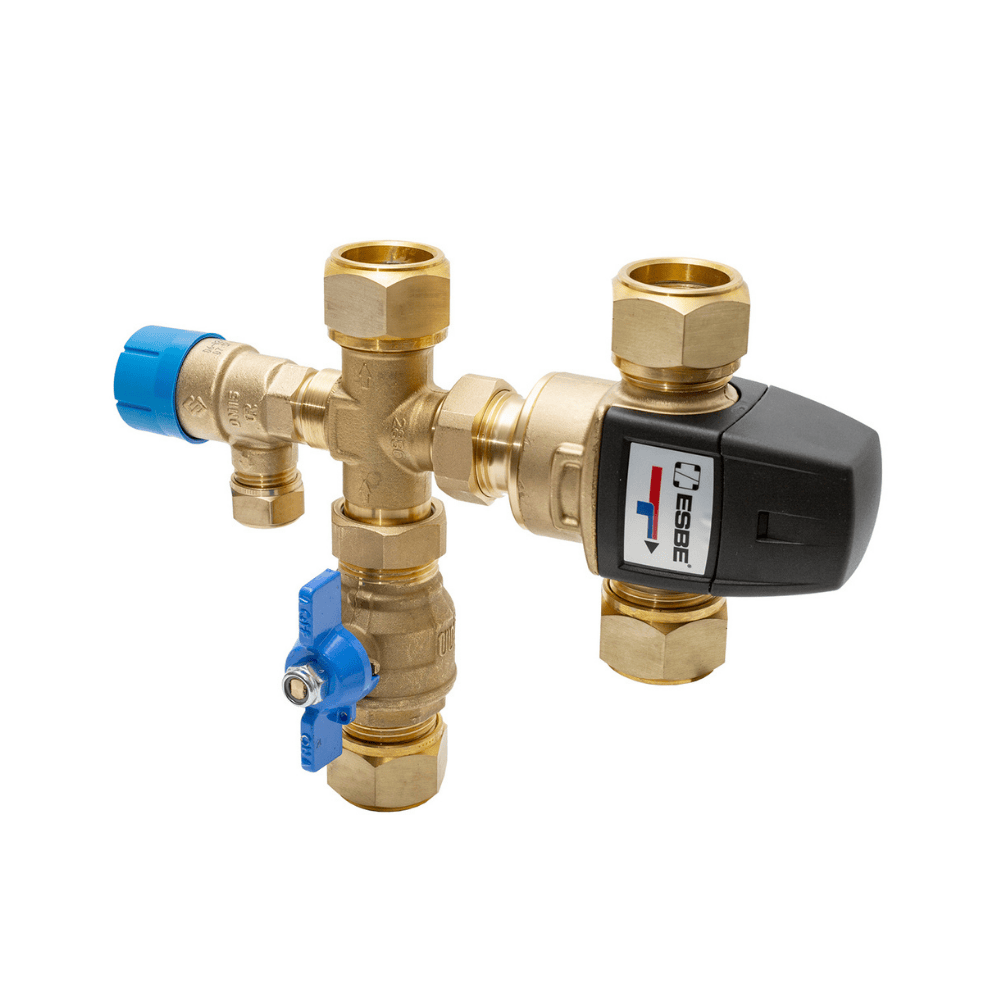

ESBE VMB523 45-65°C 28mm Compression Valve Manifold (31510100)
The series VMB400/VMB500 is a compact valve combination for hot water storage. The valve combination has non return and shut-down device incorporated and connections for safety valve, vacuum valve etc. The incoming hot-water is regulated by a thermostatic mixing valves series VTA320/VTA520.
Features:
- All in one, easy installation
- Anti-scald and anti-legionella protection
- Accuracy of regulation
Technical Specifications:
| Reference | VMB523 |
| DN | 25 |
| Kvs | 3.2 |
| Safety valve [MPa] | 0.9 |
| Safety valve [bar] | 9 |
| Connection F | CPF 28 mm |
| A (mm) | 250 |
| B (mm) | 48 |
| C (mm) | 95 |
| D (mm) | 60 |
| E (mm) | 193 |
