Description
ESBE VMC322 G1 45°C Solar Kit External Thread (31521000)
Series VMC300 for dual source domestic hot water. The Solar Kit offers optimized energy usage, scald protection and comfort in a compact and efficient way. Using only thermostatic components (non-electrical) the unit is completely independent and provides very easy installation.
Features:
- Optimized energy usage.
- Anti-scald protection.
- Accuracy of regulation.
- Easy installation.
Technical Specifications:

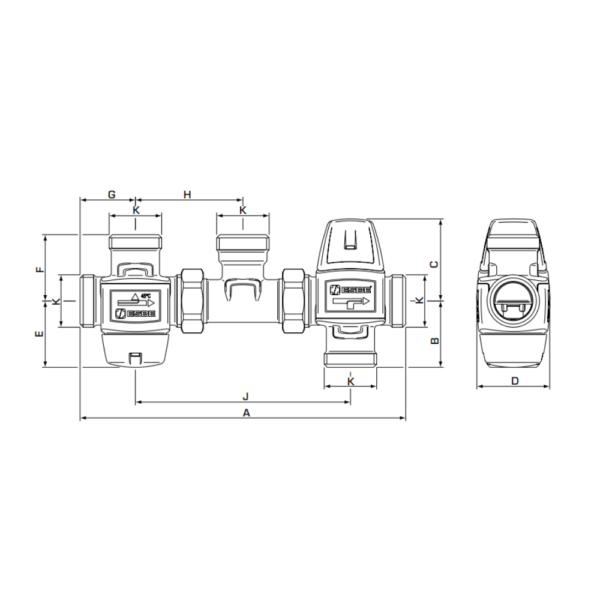

| Reference | VMC322 |
| Change-over point [°C] | 45°C |
| Kvs | 1.5 |
| Connection K | G 1″ |
| A (mm) | 206 |
| B (mm) | 42 |
| C (mm) | 52 |
| D (mm) | 46 |
| E (mm) | 42 |
| F (mm) | 42 |
| G (mm) | 35 |
| H (mm) | 68 |
| J (mm) | 136 |
