Description

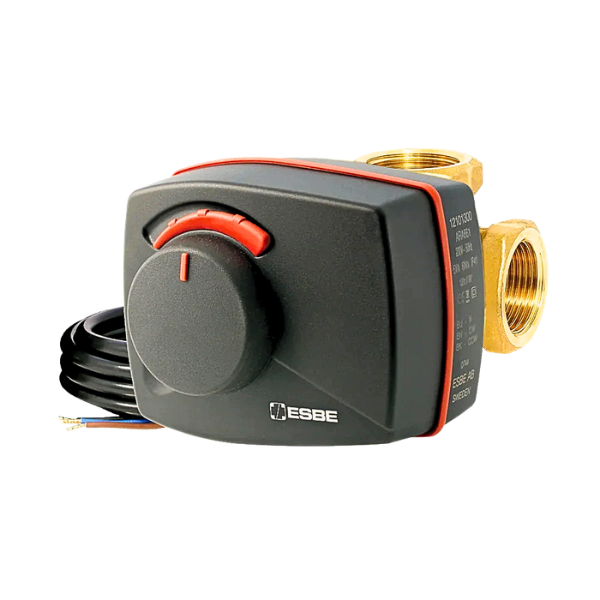

ESBE VRG131 DN20 Mixing Valve Female 6.3 Kvs + ARA661 (13022300)
Valve series VRG and actuator series ARA delivered as a set in an all-in-one package. For more information about the products, please see separate product pages.
Box Contents:
- 1 x ESBE VRG131 3-Way Mixing Valve 3/4″ BSP DN20 Female 6.3 Kvs (11600900)
- 1 x ESBE ARA661 3-Point Mixing Valve Actuator 230V 120 Second (12101300)
Technical Specifications:
| Reference | 11600900 + 12101300 |
| Reference – Mixing Valve | VRG131 |
| DN | 20 |
| Kvs | 6.3 |
| Connection | Rp 3/4″ |
| Reference – Actuator | ARA661 |
| Voltage (V AC) | 230 |
| Running time 90° (s) | 120 |
| Torque (Nm) | 6 |
For detailed technical specifications, refer to the included data sheets for both the VRG131 valve and the ARA661 actuator.
