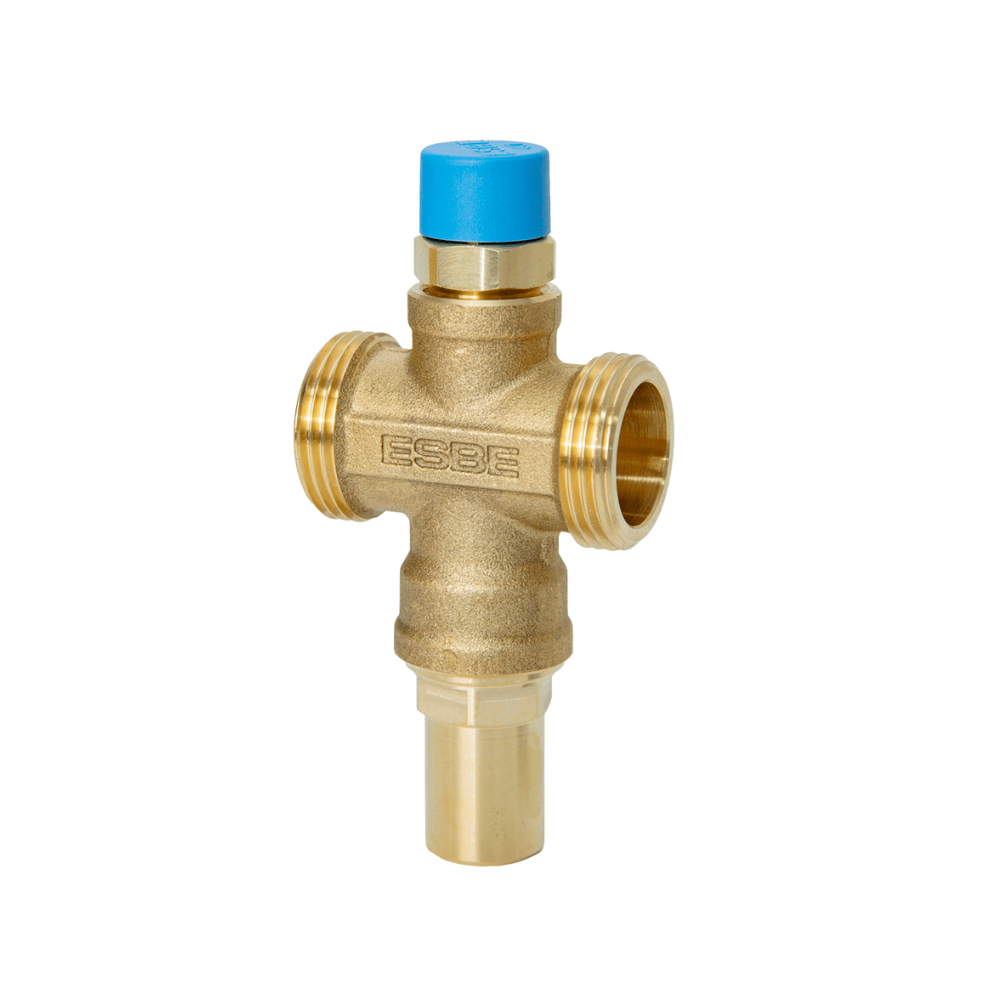

ESBE VTN102 1″ Anti-Freeze Valve (35100100)
The ESBE series VTN100 is a range of safety valves for mono bloc heat pumps to ensure that in case of a power outage during cold weather, the heatpump and plate heat exchanger should not freeze and break. When the media temperature drops below 3°C, the valve starts evacuating water allowing warmer water to reach the valve, as it closes again at a media temperature of 4°C.
Features:
- Media temperature range: 0-90°C
- Opening temperature: 3°C
- Max. discharge flow: 2 l/min @3 bar dP
- Exact temperature regulation
- Robust
- Maintenance free
Technical Specifications:

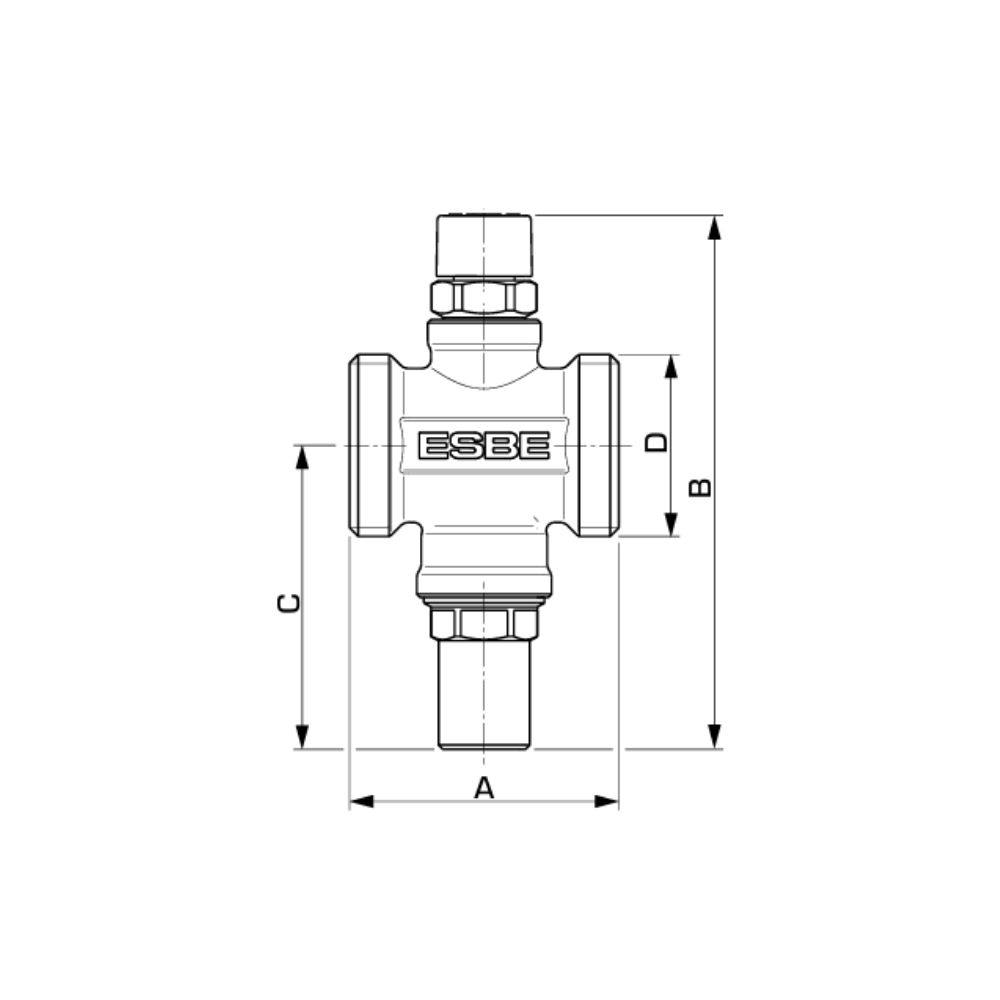

| Reference | VTN102 |
| DN | 25 |
| Connection D | G 1″ |
| A [mm] | 58 |
| B [mm] | 123 |
| C [mm] | 73 |
