Description
Intergas Combi Compact ECO RF 30 (049577)
10 Year Warranty*
The Intergas Combi Compact ECO RF 24 features a built-in RF module (some Honeywell RF thermostats can communicate with the boiler directly) and OpenTherm technology as standard.
With only 4 moving parts and vacuum insulation, the Intergas Combi Compact ECO RF 24 is an amazingly quiet and robust combi boiler, which can also be remotely monitored with an Intouch Basic gateway.
*12 Year Warranty is available when fitted with an Intergas System Filter and both items are warranty registered with Intergas Heating at the same time.
Please note: An Intergas Fitting Kit will be required to fit this boiler.
Box Contents:
- 1 x Intergas Combi Compact ECO RF 30 (049577)
- 1 x Wall Bracket
- 1 x Flexible Condensate Hose
- 1 x Installation & Operation Manual
- 1 x 10 Year Warranty Card (*12 Year Warranty is available when fitted with an Intergas System Filter and both items are warranty registered with Intergas Heating at the same time)
BOILER FLUE IS NOT INCLUDED.
The ECO RF Overview
The Intergas Combi Compact ECO RF 30 is part of Intergas Heating greenest and unique double efficiency technology range. The Intergas ECO RF is one of the most efficient boilers on the market in both heating and hot water. The intergas Combi Compact ECO RF 30 reduces CO2 emissions to an absolute minimum and provides maximum savings on heating costs. All in all, it’s good for the environment and kind to your wallet.
All Intergas ECO RF appliances have been fitted with new, ultra efficient A-rated pumps as part of new energy legislation. This halves the boilers electricity consumption. Unprecedented performance levels have been achieved using a new type of heating labyrinth. Water is heated directly within the heat exchanger’s copper circuits ensuring optimal heat transfer.

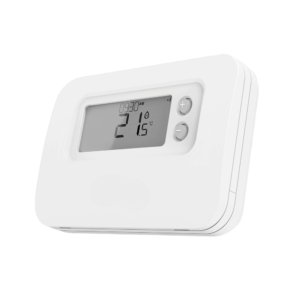

Use of vacuum insulation reduces heat and energy losses to an absolute minimum and ensures a whisper quiet operation year-in, year-out. The Intergas Combi Compact ECO RF is fitted as standard with an RF module for remote control and direct communications via Honeywell’s wireless room thermostats (CMS927/T87RF).
Features:
- Unique 2-in-1 heat exchanger
- 10 year warranty on parts & labour (*12 Year Warranty When Fit With Intergas System Filters)
- Virtually no standby losses
- High efficiency pump EuP ready (2015)
- Innovative control system
- Just 12 components and only 4 moving parts
- Ultra high efficiency, boiler condenses 100% continuously
- Build in RF module providing wireless connection to Honeywell Home wireless room thermostats & Intouch remote monitoring
Specifications:
Domestic Hot Water | |
Input (kW) | 7.1 – 28 |
DHW Flow Rate @ 35°C Rise | 10.5 l/min |
DHW Energy Efficiency Rating | A (87% ErP) |
Central Heating | |
Input (kW) | 7.2 -23.7 |
Space Heating Energy Efficiency Rating | A (93% ErP) |
Boiler Dimensions & Weight | |
Height (mm) | 650 |
Width (mm) | 450 |
Depth (mm) | 240 |
Weight (kg) | 33 |
Standard Concentric 60/100 mm Flue Length | |
Max Horizontal (C13) (m) | 10 |
Max Vertical (C33) (m) | 10 |
Twin Flue 80 mm Flue Length | |
Max Horizontal (C13) (m) | 40 |
Max Vertical (C33) (m) | 40 |
Max Vertical (C53, facade air intake) (m) | 40 |
If you have any questions about the Intergas Combi Compact ECO RF 30, please email us.
