Description

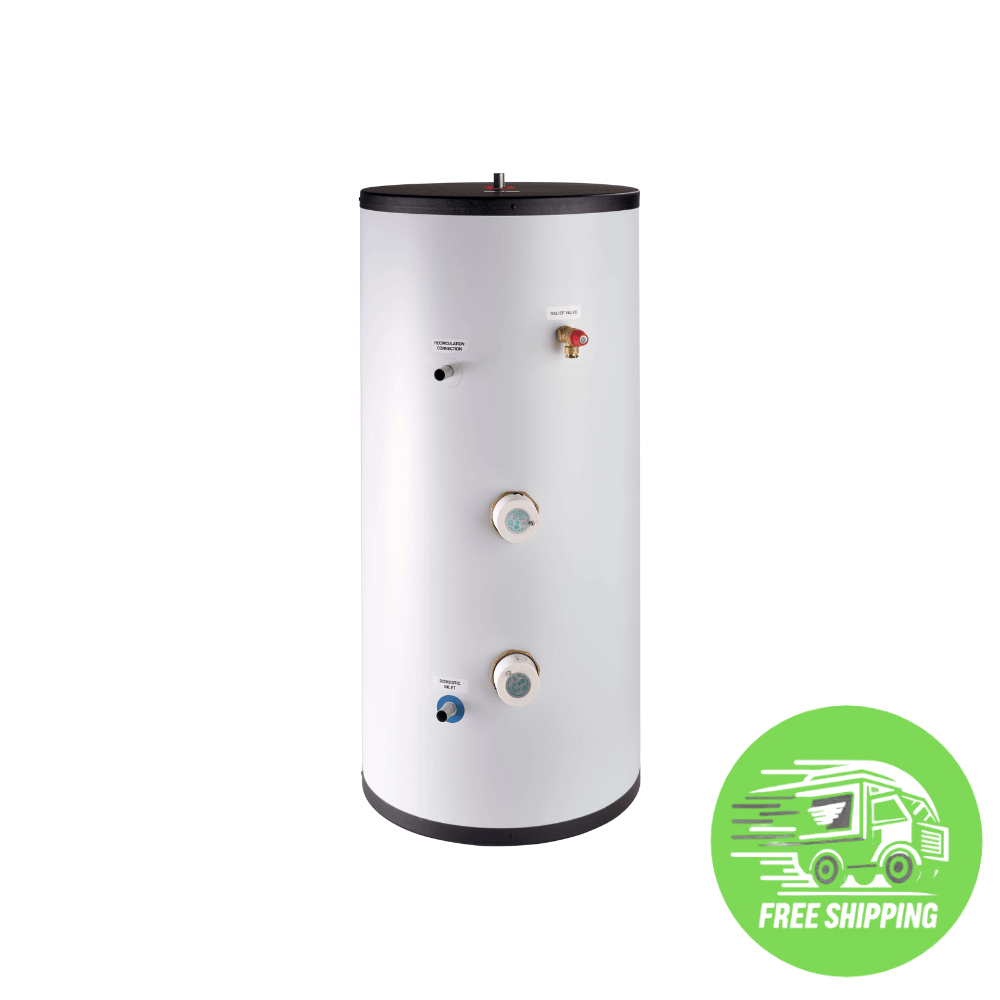

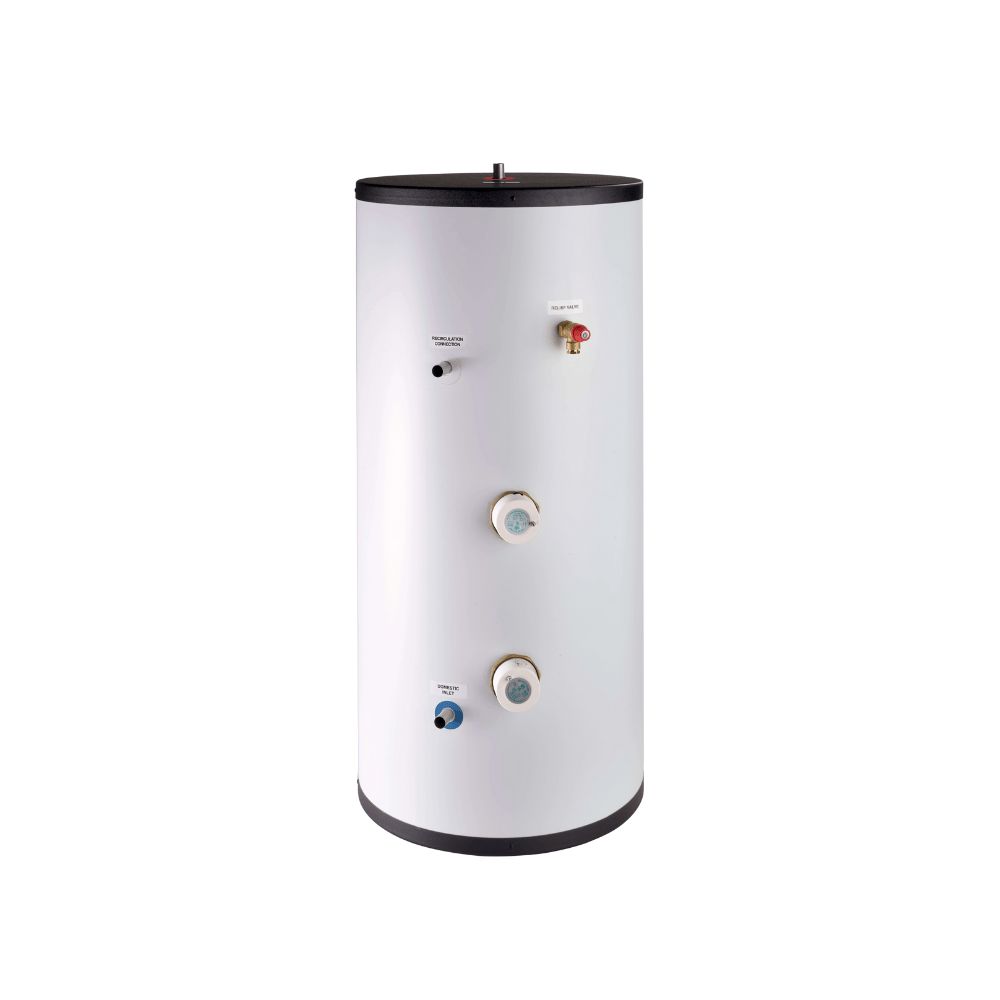

Intergas Xylinder 150 Litre Direct Cylinder (212955)

Box Contents:

• 1 x Intergas Xylinder 150 Litre Direct Cylinder (212955)
• Standard G3 Kit comprised of:
  • Expansion Vessel
  • Dual Stat
  • PRV
  • Inlet Group
  • Diverter Valve
  • Tundish

Intergas Xylinder 150 Litre Features:

• Manufactured using grade 444 stainless steel for extreme corrosion resistance and heat transfer capabilities.
• Smooth internal coil for superior heat transfer and rapid cylinder recovery.
• Immersion above coil saves energy and also enables rapid cylinder recovery.
• All cylinders have sensor pockets and titanium 3kW immersion heater (two for Direct cylinders).
• Easy to install as every connection is on a 30-degree plane at the front of the cylinder.
• Lightweight construction and built-in carry handle on bottom lid for ease of manoeuvrability.
• Xylinders come with a 25-year warranty and a 2-year parts and labour warranty.

Specifications:

Dimensions and weight:

Height: 1180mm

Width: 550mm

Weight (kg): 26.7

Tech Data:

Actual water volume (litres): 151.9

Weight when full (kg): 179.6

6 kW Reheat time 15°c– 60°c (min): 93

Heat Loss (W): 62

Heat Loss  EN 12897:2006 (kWh/24): 1.48

Immersion heater Capacity (Qty (kW): 2 (6kW)

Energy Rating EU: C

Max operating temperature fluid (°c): 90
