Description

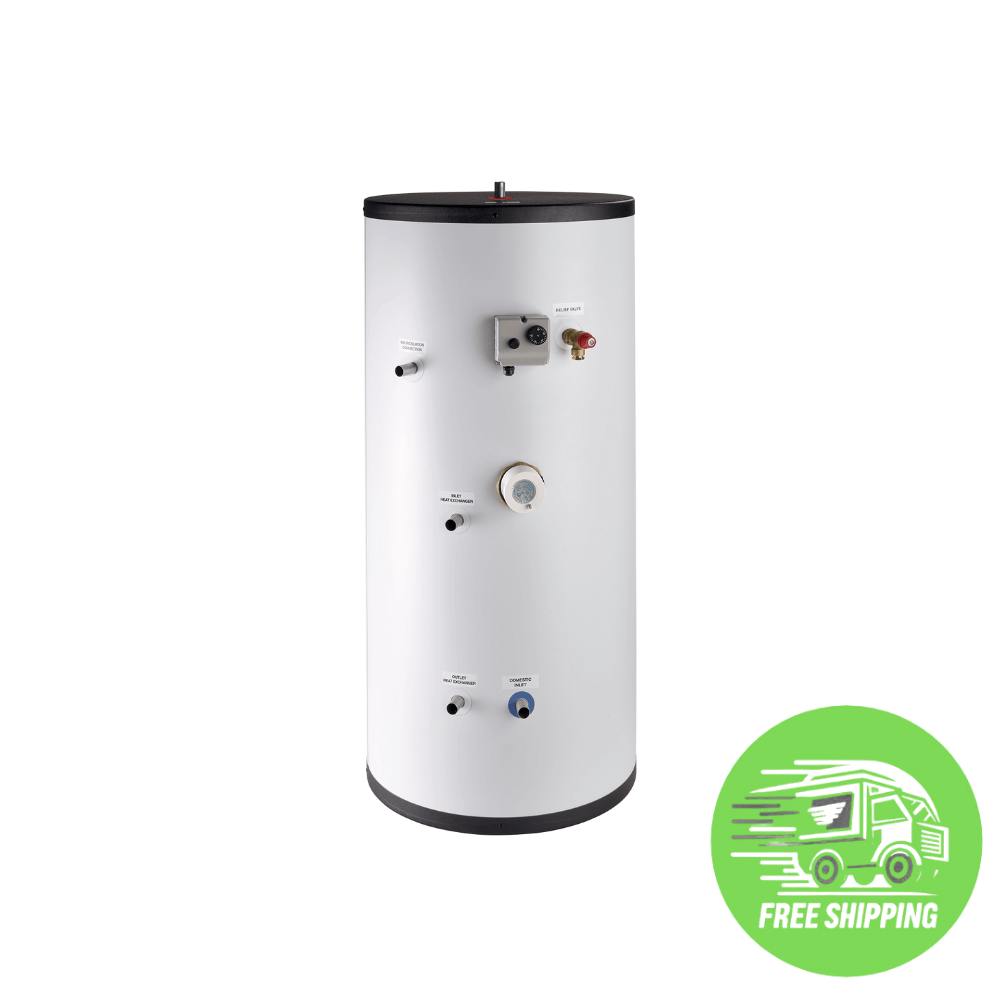

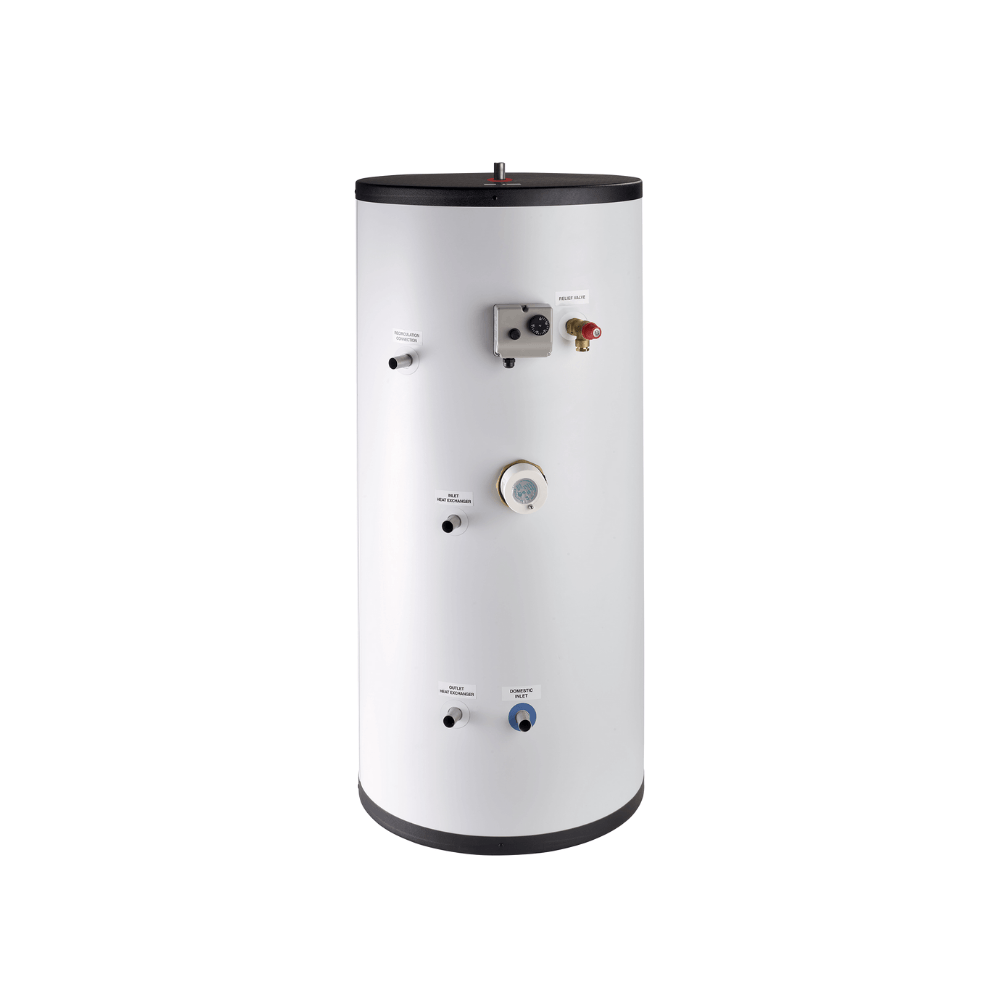

Intergas Xylinder 300 Litre Indirect Heat Pump Cylinder (212964)
Box Contents:
- 1 x Intergas Xylinder 300 Litre Indirect Heat Pump Cylinder (212964)
- Standard G3 Kit comprised of:
- Expansion Vessel
- Dual Stat
- PRV
- Inlet Group
- Diverter Valve
- Tundish
Intergas Xylinder 300 Litre Features:
- Manufactured using grade 444 stainless steel for extreme corrosion resistance and heat transfer capabilities.
- Smooth internal coil for superior heat transfer and rapid cylinder recovery.
- Immersion above coil saves energy and also enables rapid cylinder recovery.
- All cylinders have sensor pockets and titanium 3kW immersion heater (two for Direct cylinders).
- Easy to install as every connection is on a 30-degree plane at the front of the cylinder.
- Lightweight construction and built-in carry handle on bottom lid for ease of manoeuvrability.
- Xylinders come with a 25-year warranty and a 2-year parts and labour warranty.
Specifications:
Dimensions and weight:
Height: 1730mm
Width: 600mm
Weight (kg): 56.4
Tech Data:
Coil Surface area (m3): 2.98
Coil Rating kW: 40.9
Coil length (m): 33.9
Actual water volume (litres): 283.4
Weight when full (kg): 340
Reheat times 15°c– 60°c (min): 18
Primary heater pressure drop (mb): 95
Primary flow ratel/h1400
Heat Loss (W): 101.7
Heat Loss EN 12897:2006 (kWh/24): 2.44
Immersion heater Capacity (Qty (kW): 1 (3kW)
Energy Rating EU: D
Max operating temperature fluid (°c): 90
