Description

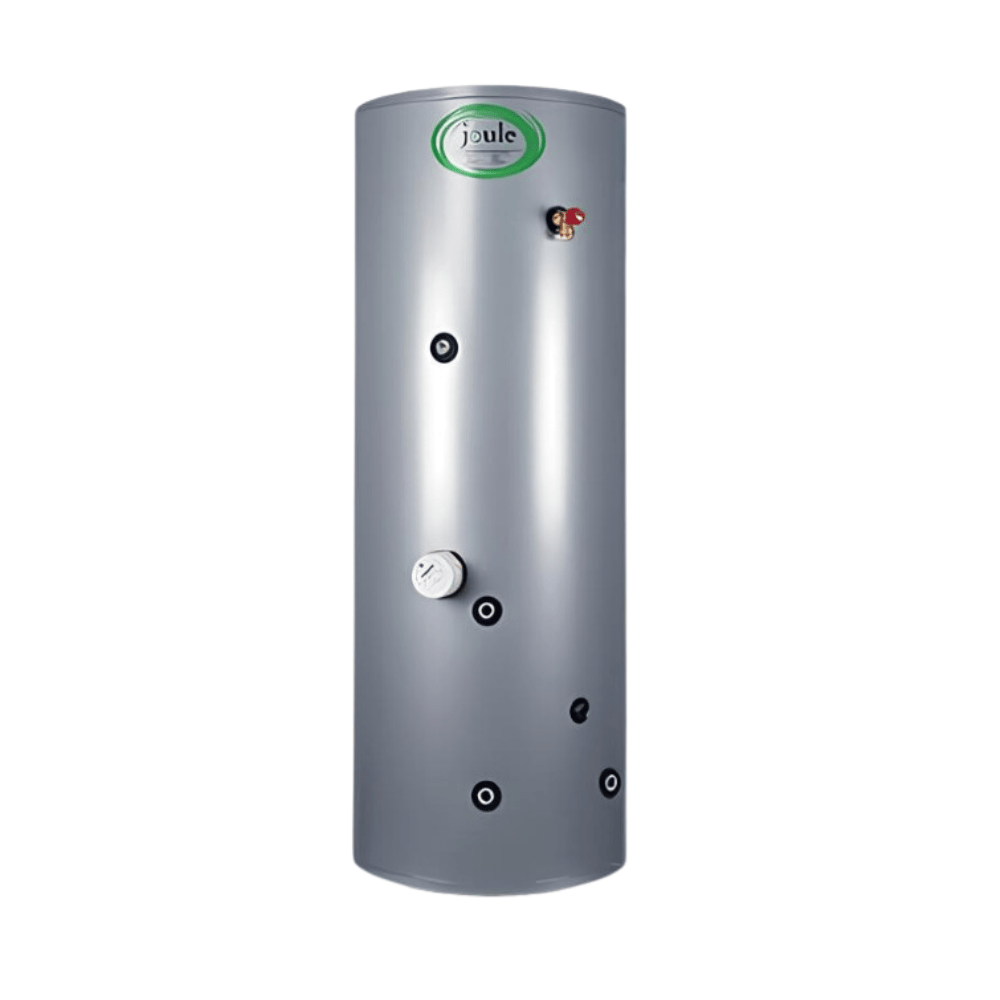

Joule Cyclone Platinum 170 Litre Indirect Standard Unvented Cylinder (TCEMVI-0170LFB)
*Call 01686 626314 for availability
Key Specifications (TCEMVI-0170LFB):
| Actual Capacity (Ltr) | 168 |
| Height (mm) | 1270 |
| Diameter (mm) | 530 |
| Thermal Insulation | DENSE PU FOAM |
| Unit Weight Empty (kg) | 43 |
| Unit Weight Full (kg) | 210 |
| Cylinder Material | LDX 2101 |
| Outer Casing | Coated Mild Steel |
| No Immersions | 1 |
| Coil Material | 316L Stainless Steel |
| Immersion Spec | 3kW@230V |
| Foam Thickness | 0 |
| Max Mains Water Pressure (Bar) | 10 |
| Operating Pressure (Bar) | 7 |
| Safety Temp Valve (C) | 95 |
| Tested To Standard | BS EN 12897:2006 |
| Warranty Terms | 1 Year |
| No Heat Exchangers | 1 |
| Heat Loss | 1.392 |
| Coil 1 Rating (kW) | 20 |
| Coil 1 Max Prim Pressure (Bar) | 3.5 |
| Coil 1 Resistance (Bar) | .58 |
Click here to view the brochure
