Description

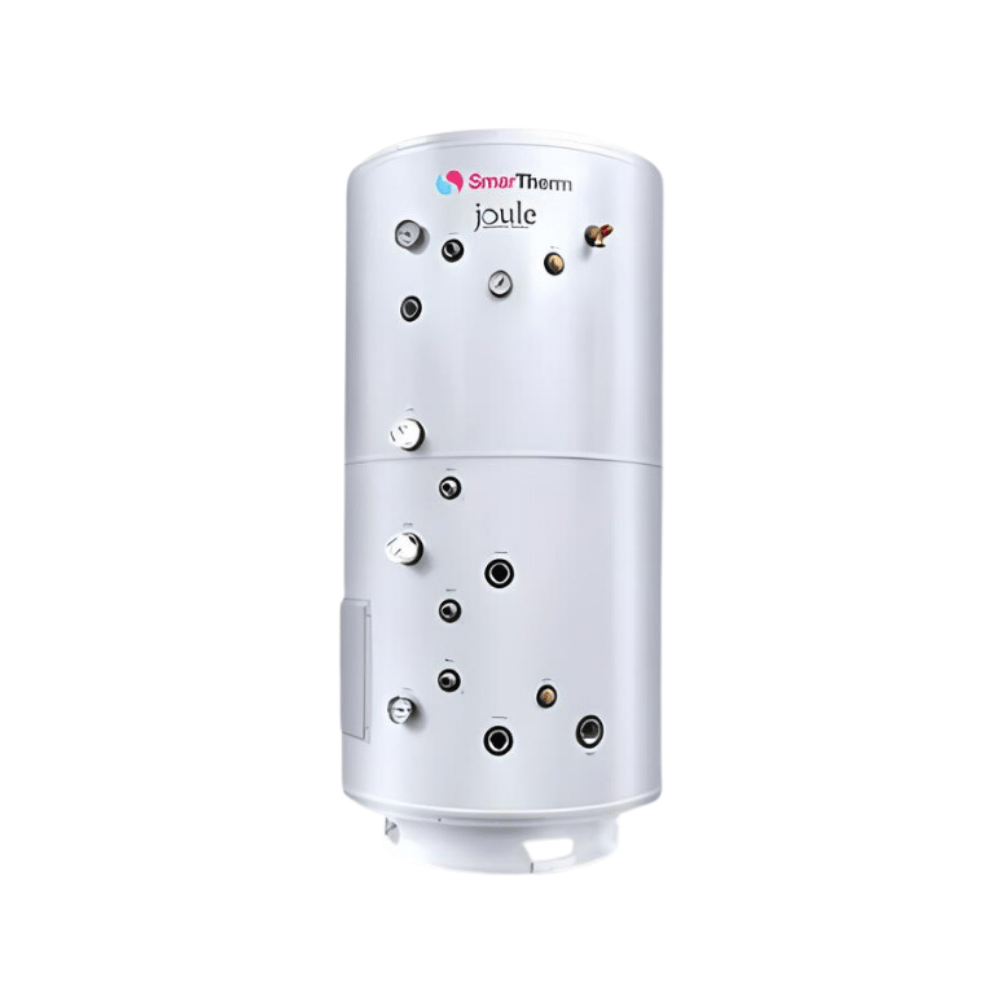

Joule SmarTherm 800 Litre Indirect Commercial Cylinder (TCFMVIX0800LFC)
*Please contact 01686 626314 for availability
The Joule Smartherm range of commercial cylinders are KIWA certified and fully compliant for G3 installations. The cylinder is floor standing and manufactured from Duplex LDX 2102 3mm stainless steel sheet thickness and AISI 316L with 4mm thickness.
Key Specifications (TCFMVIX0800LFC):
| Height (mm) | 2100 |
| Diameter (mm) | 950 |
| Hot and Cold Connections BSP F | 2″ |
| Primary Coil Conn. BSP F | 1.5″ |
| Secondary Return BSP F | 1.25″ |
| T&P Temp / Pressure Setting | 95°C / 7 Bar |
| T&P Size | 3/4” |
| Exp. Relief Valve Setting (Bar) | 6 |
| 2-port Mot. Valve (Indirect Only) | 28mm |
| 2-port Mot. Valve Conn. (Indirect Only) | Compression nut and olive |
| Expansion Vessel Size (Litres) | 80 |
| ErP Energy Efficiency Class | C |
| Standing Loss (W) | 121 |
