Description

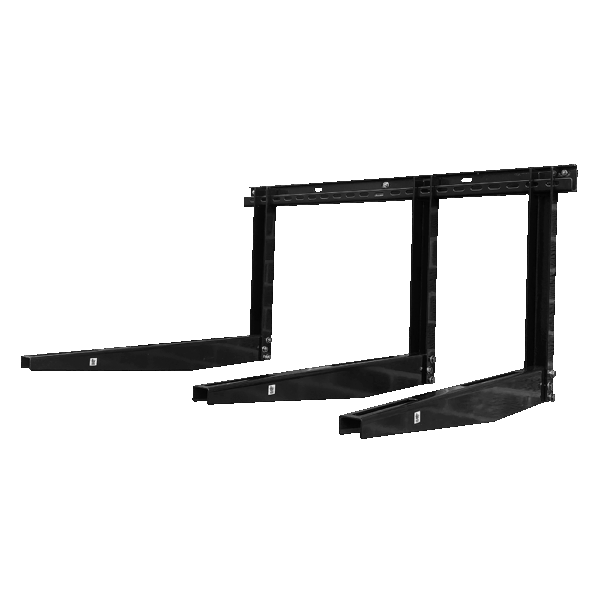

Pump House 3 Arm XXL Black Type 2 Heat Pump Mounting Bracket
Pump House provide a variety of flat-packed brackets designed to suit different installation needs:
- Type 1 Bracket: Features uprights that mount directly to the wall.
- Type 2 Bracket: Includes a crossbar, allowing precise spacing of the uprights. It also comes with an integral spirit level for easier installation.
- Type 3 Bracket: Boasts a unique interlocking mechanism that enables the arms to be joined in seconds.
For enhanced corrosion resistance, all metal components undergo a 100% zinc plating process, followed by a durable ED coating, and are finished with an external-grade polyester textured powder coating in RAL 7032.
We can provide a selection of stainless steel brackets, ideal for coastal or corrosive environments where exposure to sea salt or harsh conditions is a concern.
Features:
- Integral spirit level for easier, correct installation
- Uprights mount anywhere on the crossbar which enables the arm span to be adjusted easily
- Suitable to match most brands of condensing units and domestic air source heat pumps
- Extra long arms (up to 660mm available for larger condensing units)
- Textured finish in (RAL 7032)Weight: 17.3kg
-
Crossbar: 1120mm
-
Upright: 550mm
-
Support arm: 780mm
-
Description BLACK: Type 2 Bracket – Double XL (3 arms)
-
Max load: 400kg
-
Safe working load: 200kg
- Reference: CBR2-XXL-3A-BL-D
Pump House 3 Arm XXL Black Type 2 Heat Pump Mounting Bracket Data Sheet
