Description
Vaillant aroTHERM Plus 12kW Bundle Pack (210L Wireless)

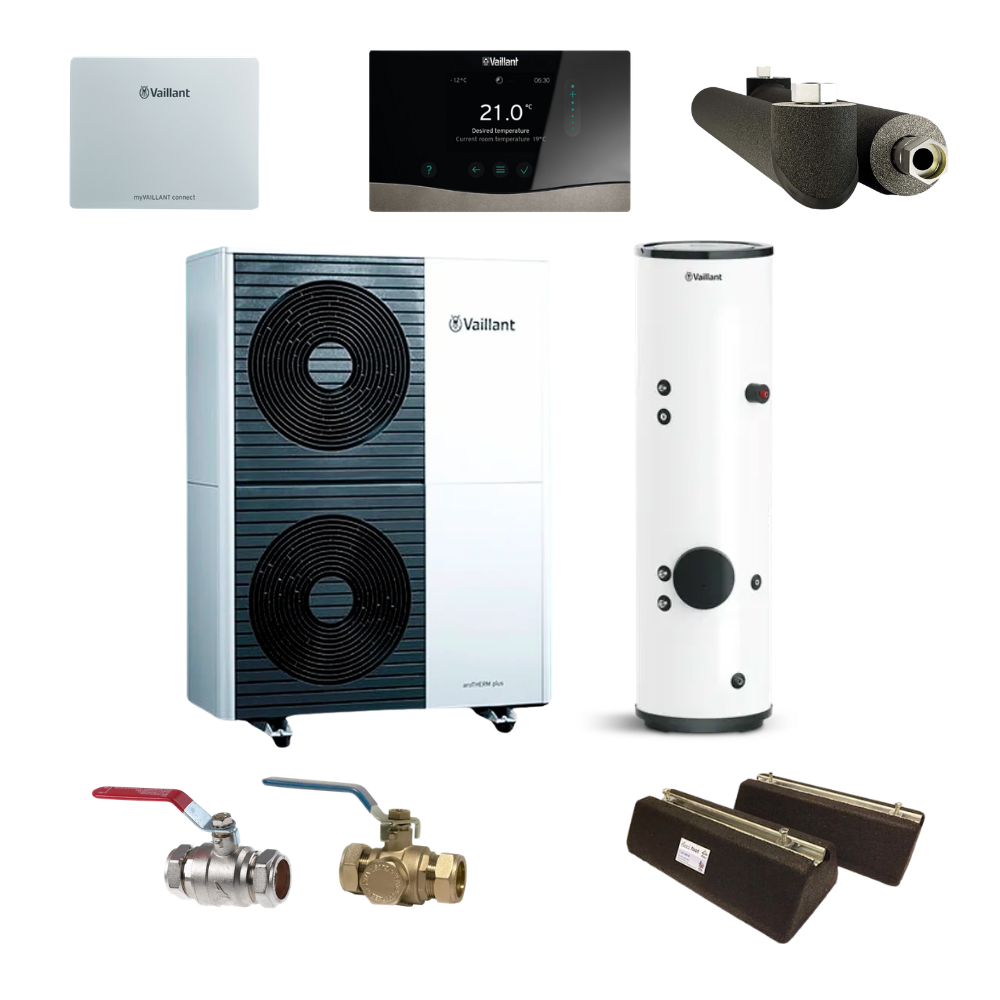

This Pack Includes:
- 1x Vaillant aroTHERM Plus 12kW & VWZ AI Heat Pump Interface (0010037215)
- 1x Vaillant UniSTOR Pure 210 Litre Heat Pump Cylinder (8000011514)
- 1x Vaillant myVAILLANT Connect Internet Gateway / VR940f + VRA42 (0010038367)
- 1x Vaillant sensoCOMFORT Wireless VRC720f Thermostat (0020260937)
- 1x Intatec 500mm Pre-Insulated Angled Hose 1.25″ Female Swivel x 35mm Twin Pack (HPHOSE50035B)
- 1x Inta 35mm Ball Valve With 500 Micron Filter Cartridge (BVF35)
- 1x 35mm Compression Ball Lever Valve (Red Handle)
- 2x 600mm Heat Pump Feet (with Fixing Kit)
Heat Pump Specifications
| Nominal Capacity | 12.0 kW |
| Compressor Type | Rotary Piston |
| Refrigerant Type | R290 |
| Refrigerant Volume | 1.3 kg |
| Flow Rate @ 12 kW (DT5) | 34.3 L/m |
| Max Flow Temp | 75°C |
| Max Sound Level (EN14511) | 60 dB(A) |
| Warranty | Min 2 Years* |
Cylinder Specifications
| Product Code | 8000011514 |
| Manufacturer Code | VIH RW 210/5 C ES |
| Hot Water Capacity | 198 litres |
| Standby Losses (24 hours) | 1.5 kWh |
| Energy Efficiency Class | C |
| Coil Surface Area | 2.4m2 |
| Expansion Vessel Size | 18 Litre |
| Flow & Return Connections | 28mm Compresssion |
| Cold & Hot Connections | 22mm Compression |
Heat Pump Dimensions
| Height | 1565 mm |
| Width | 1100 mm |
| Depth | 449 mm |
| Net Weight | 194 kg |
Cylinder Dimensions
| Height | 1544 mm |
| Diameter | 580 mm |
| Weight | 51.5 kg |
| Weight Full | 260.5 kg |
| Insulation Thickness | 50 mm |
