Description

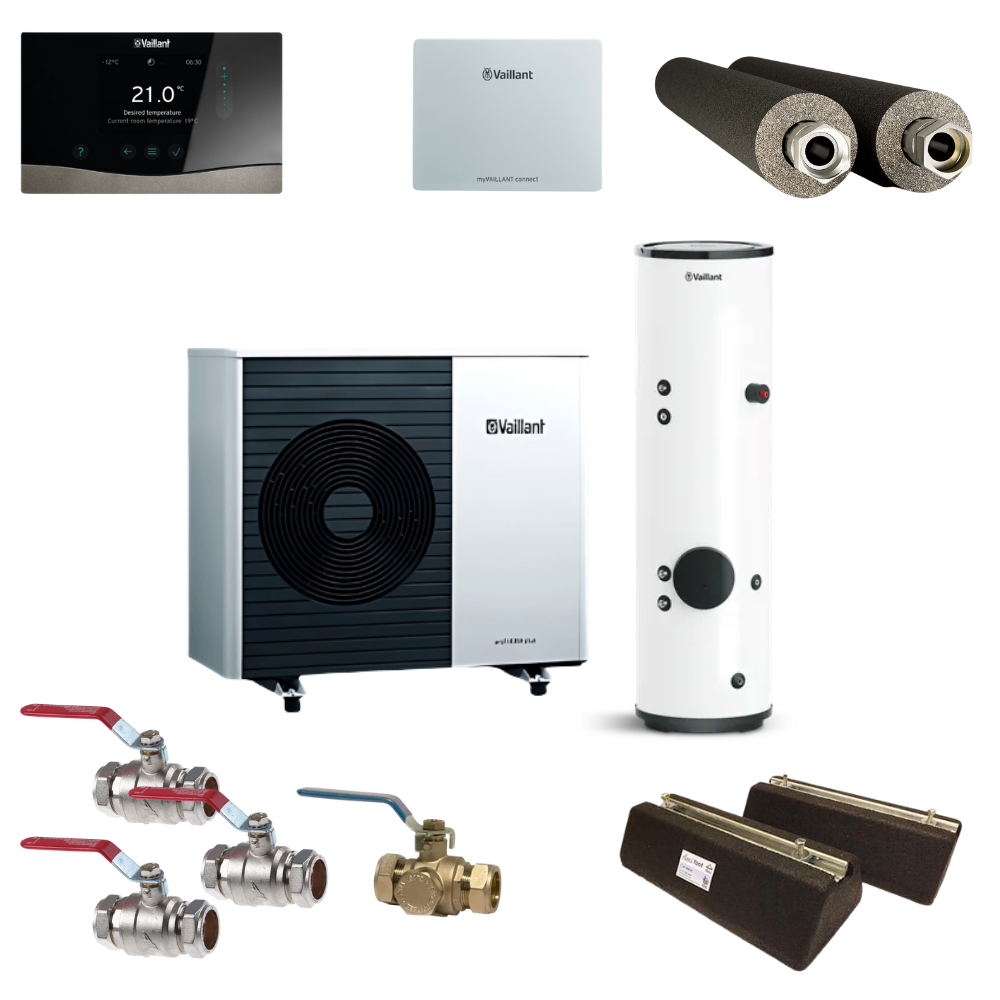

Vaillant aroTHERM Plus 5kW Bundle Pack (200L)
This Pack Includes:
- 1x Vaillant aroTHERM Plus 5kW & VWZ AI Heat Pump Interface (0010037212)
- 1x Vaillant UniSTOR Pure 210 Litre Heat Pump Cylinder (8000011514)
- 1x Vaillant myVAILLANT Connect Internet Gateway / VR940f + VRA42 (0010038367)
- 1x Vaillant sensoCOMFORT VRC720 Wired Thermostat (0020260921)
- 1x Inta 500mm Pre-Insulated Hoses 1.25″ Female Swivel x 35mm Compression (HPHOSE50035)
- 1x Inta 28mm Ball Valve With 500 Micron Filter Cartridge (BVF28)
- 3x 28mm Compression Ball Lever Valve (comes with Red & Blue Handles)
- 2x 600mm Heat Pump Feet (with Fixing Kit)
Heat Pump Specifications
| Nominal capacity | 5 kW |
| Compressor type | Rotary Piston |
| Refrigerant type | R290 |
| Refrigerant volume | 0.6 kg |
| Required flow rate | 7 L/m |
| Max Flow Temp | 75°C |
| Max Sound Level (EN14511) | 54 dB(A) |
| Warranty | Min 2 Years* |
Cylinder Specifications
| Product Code | 8000011514 |
| Manufacturer Code | VIH RW 210/5 C ES |
| Hot Water Capacity | 198 litres |
| Standby Losses (24 hours) | 1.7 kWh |
| Energy Efficiency Class | C |
| Coil Surface Area | 2.4 m2 |
| Expansion Vessel Size | 18 Litre |
| Flow & Return Connections | 1″ BSP F |
| Cold & Hot Connections | 3/4″ BSP F |
Heat Pump Dimensions
| Height | 765 mm |
| Width | 1100 mm |
| Depth | 449 mm |
| Net weight | 114 kg |
| Flow & Return Connections | 1.25″ Female (For Flat Face Connector) |
Cylinder Dimensions
| Height | 1544 mm |
| Diameter | 580 mm |
| Weight | 51.5 kg |
| Weight Full | 260.5 kg |
| Insulation Thickness | 50 mm |
