Description

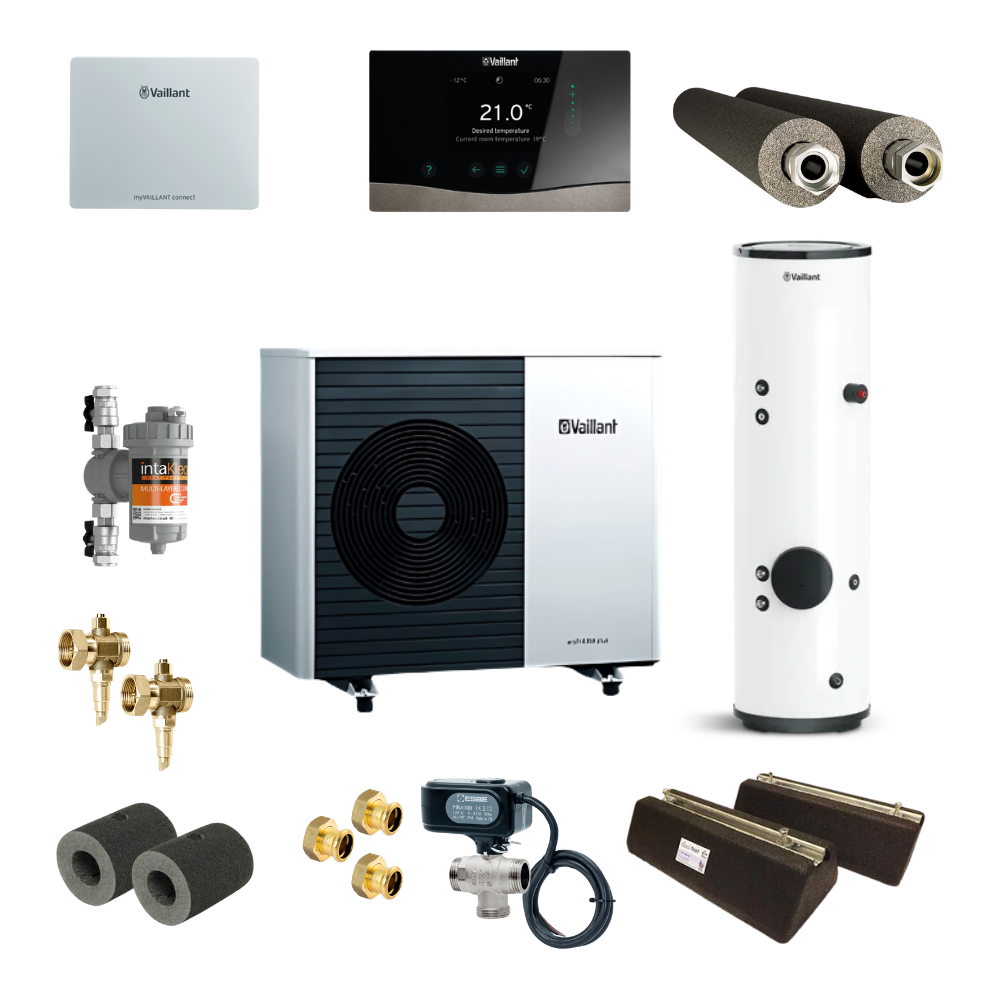

Vaillant aroTHERM Plus 5kW L&M Bundle Pack (250L Wireless)
This Pack Includes:
- 1x Vaillant aroTHERM Plus 5kW & VWZ AI Heat Pump Interface (0010037212)
- 1x Vaillant uniSTOR Pure HP 250 Litre Cylinder (8000011515)
- 1x Vaillant myVAILLANT Connect Internet Gateway / VR940f + VRA42 (0010038367)
- 1x Vaillant sensocomfort Wireless VRC720f Thermostat (0020260937)
- 1x 600mm Heat Pump Feet (with Fixing Kit) Twin Pack
- 2x Intatec 1.25″ Male x 1.25″ Female Swivel Zero Anti-Freeze Valve (ZERO14SW)
- 2x Primary Pro 35mm & 1.25″ Intatec Anti-Freeze Valve Insulation Shell (AS52)
- 1x Inta 500mm Pre-Insulated Hoses 1.25″ Female Swivel x 35mm Compression (HPHOSE50035)
- 1x IntaKlean HP 28mm Heat Pump Magnetic Filter (IKHPMF28)
- 1x ESBE MBA132 3-Way Diverter Valve 1.25″ BSP Male 11.3 Kvs (43102600)
- 3x 1.25″ BSP Flat Faced Union Adaptor x 28mm Copper Press Fit (M Press)
Heat Pump Specifications
| Nominal capacity | 5 kW |
| Compressor type | Rotary Piston |
| Refrigerant type | R290 |
| Refrigerant volume | 0.6 kg |
| Required flow rate | 7 L/m |
| Max Flow Temp | 75°C |
| Max Sound Level (EN14511) | 54 dB(A) |
| Warranty | Min 2 Years* |
Cylinder Specifications
| Product Code | 8000011515 |
| Hot Water Capacity | 248.8 litres |
| Standby Losses (24 hours) | 1.69 kWh |
| Energy Efficiency Class | C |
| Coil Surface Area | 2.6m2 |
| Expansion Vessel Size | 25 Litre |
| Flow & Return Connections | 28mm Compression |
| Cold & Hot Connections | 22mm Compression |
Heat Pump Dimensions
| Height | 765 mm |
| Width | 1100 mm |
| Depth | 449 mm |
| Net weight | 114 kg |
| Flow & Return Connections | 1.25″ Female (For Flat Face Connector) |
Cylinder Dimensions
| Height | 1799 mm |
| Diameter | 580 mm |
| Weight | 58 kg |
| Weight Full | 318 kg |
| Insulation Thickness | 50 mm |
