Description

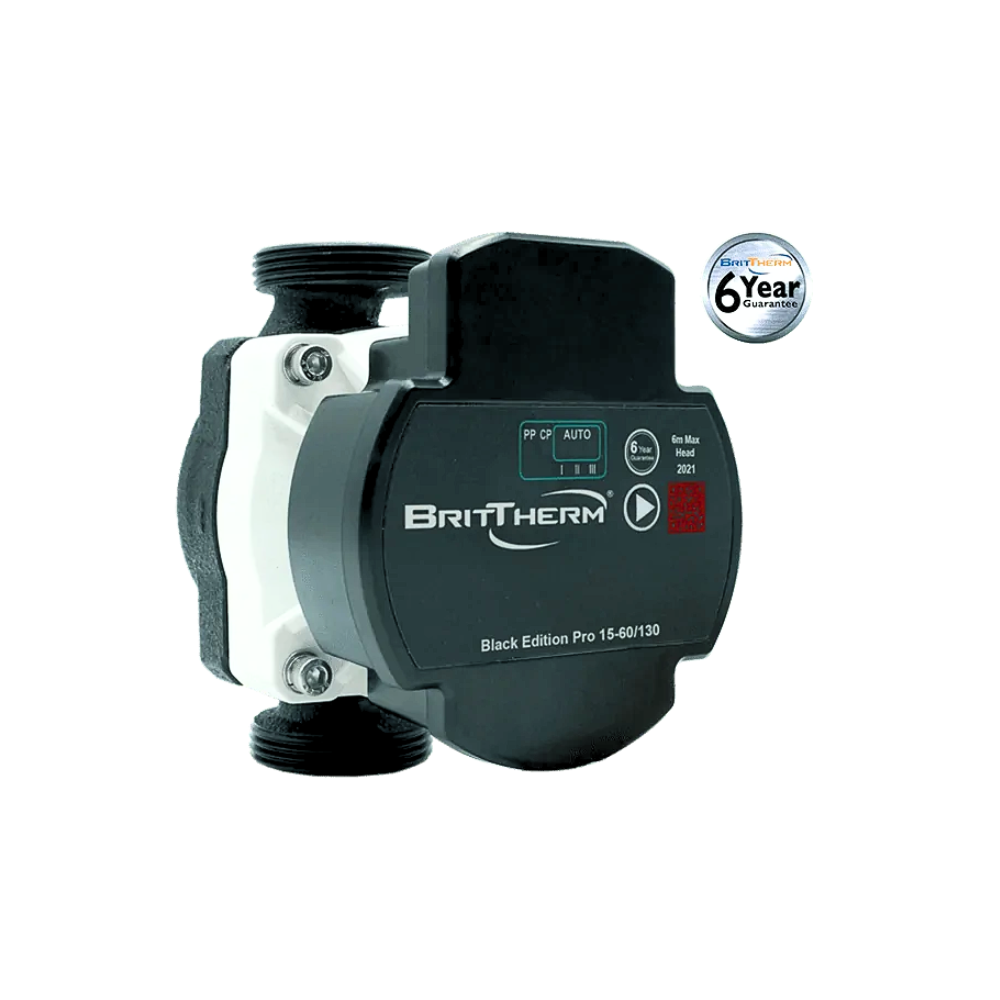

BritTherm™ Black Edition Pro 15-60/130 Compact Heating Circulator
The BritTherm™ Black Edition Pro 15-60/130 is a Compact Modulating Semi-Automatic Domestic Heating Circulator with a standard 1 ½” threaded connection. It has a port-to-port distance of 130mm and produces a maximum head of 6 meters, making it perfect both for replacements and for new installations in domestic heating systems. Its head fits perfectly onto the Grundfos UPS3/UPM3, and it can be used both externally and in newer combination Boilers.
This pump modulates, meaning it is capable of delivering an outlet pressure that is proportional to the actual system demand at any given time. This is based on the resistance it experiences when valves are closed in either underfloor or radiator systems. It can also be used as a PWM pump if the boiler or heat pump is capable of this type of control.
Alternatively, it can be set manually using the same fixed speeds you would find on a 3-speed manual Circulator, which is why we call it ‘semi-automatic’, much like a car with this type of gearbox, it is capable of both manual and automatic operation.
The BritTherm™ Black Edition Pro comes with a 6 year BritTherm™ guarantee and is no different in size to the market-leading brands found in most British homes.
Technical Specification
Connection Size: 1 ½”
Port to Port Distance: 130mm
Maximum Head: 6 Meters
Maximum Flow Rate: 53 Litres Per Minute
Energy Efficiency Index (EEI): 0.20
Speed Control: 10 Modes
Maximum System Pressure: 1.0 MPa / 10 Bar
Protection Class: IP42
Temperature Class: TF110ºC
Insulation Class: E
Supplied With: Rubber Washers x2 & Quick Connect Cable
Material: Cast Iron
Colour: Black/White
Weight: 1.8kg
