Description

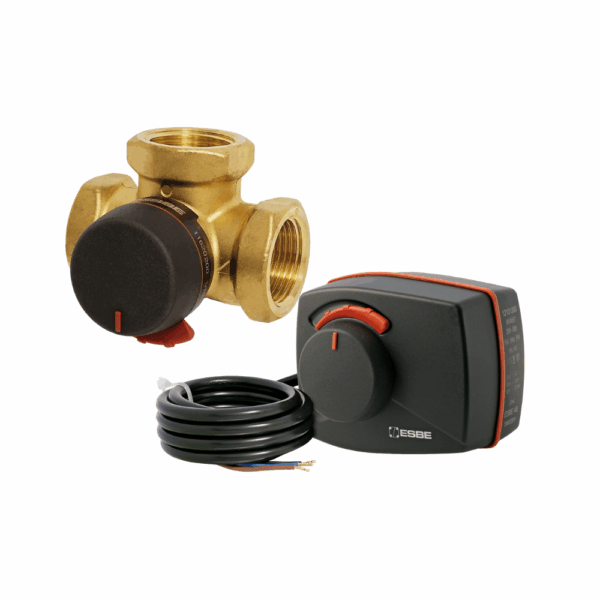

ESBE Diverter Valve Pack (VRG231) 2″ BSP Female 40 Kvs

This ESBE 3-Way Diverter Valve Pack combines the high-quality VRG231 valve with the reliable ARA645 actuator for efficient and precise flow control in heating and cooling systems.

Box Contents:

• 1 x ESBE VRG231 3-Way Diverter Valve 2″ BSP Female 40 Kvs (11621600): A versatile valve designed for midport change-over and diverting operations. Made from high-performing brass, it supports use in a range of heating and cooling installations. Compatible with DN15-50 connections to fit most pipe sizes.
• 1 x ESBE ARA645 2-Point Diverter Valve Actuator 230V 30 Second (12120800): A compact, 2-point (on/off) actuator with a 90° operating range, specifically designed for rotary valves up to DN32.

Features:

• Precise Flow Control: The VRG231 valve boasts a low leakage rate of 0.05%, offering exceptional regulating accuracy with near-linear performance.
• Manual Operation Flexibility: Equipped with non-slip knobs and 90° end stops, the valve allows easy manual adjustments. The position scale is rotatable, enabling various mounting configurations.
• Durability and Versatility: Suitable for both mixing and diverting applications, the pack provides an effective replacement for older cast iron valve models.
• Easy Automation: No linkage kit is required, thanks to the seamless valve-to-actuator interface, making automation straightforward and reliable.
• Protection and Performance: The ARA645 actuator operates within a wide ambient temperature range (up to +55°C) and features an IP41 protection rating.

Ideal for professional heating installations, this pack offers a ready-to-install solution for diverting flow with precision and reliability.

For detailed technical specifications, refer to the included data sheets for both the VRG231 valve and the ARA645 actuator.
