Description
ESBE GFF111 DN25 Fixed Temperature Pump Group (61220100)
The ESBE series GFF100 is a circulation mixing unit which is intended for heating circulations where the constant temperature control are required. Equipped with two shut-off valves with thermometers, check valve and high class isolation shell. The GFF100 is delivered with the 3-way thermostatic valve, which provides constant temperature regulation of the heating system and adjustable temperature setting. The ESBE Circulation Unit GFF100 is ready to work with 180mm pumps. The smart adjustable insulation shell makes it sure that any kind of pump will be isolated in a right way.
The ESBE series GFF100 is a fixed temperature circulation unit, available in size DN25, designed to be used with almost any 180mm pump available on the market. The group is equipped with an insulation shell which can be adjusted according to the pump design, even if the pump is delivered with its own insulation. ESBE have put a lot of effort to make
the adjustment process easy and clear, and to make the result of product adjustment like factory assembled. The series GFF100 is equipped with a thermostatic mixing valve with kvs 3,4 and temperature range 20-55°C.
Features:
- Constant temperature control thanks to the thermostatic valve
- Adjustable flow temperature settings
- 180mm pump ready – be free to use favorite pump manufacturer
- High class, adjustable insulation shell
Technical Specifications:
| Reference | GFF111 |
| DN | 25 |
| Temperature range [°C] | 20−55 |

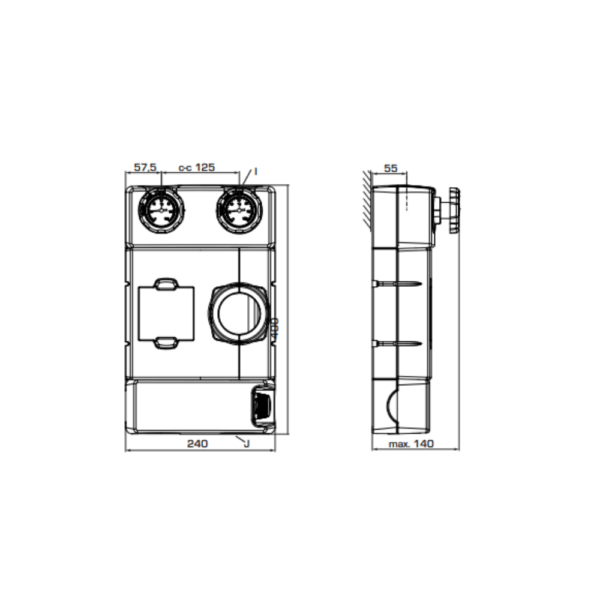

| Connection I | G 1″ |
| Connection J | G 1 1/2″ |
