Description

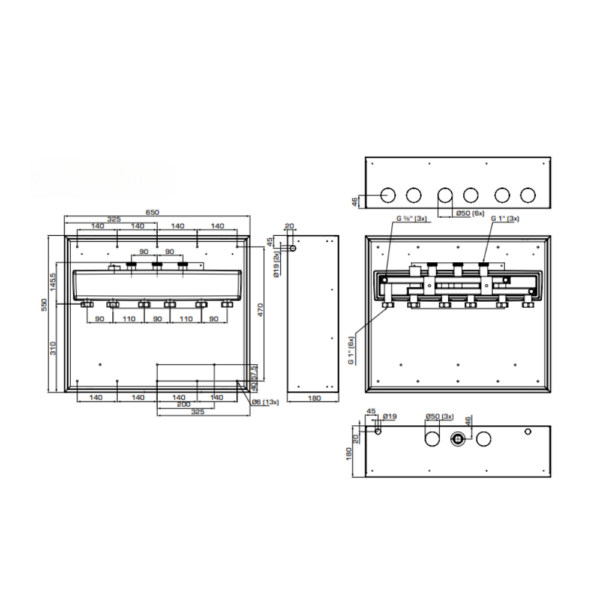

ESBE Manifold Box Series GMB600 (66000700)
ESBE Manifold Box GMB600 consist of a sheet metal box and a pre-assembled three circuit distribution manifold. The manifold is designed with a thermal separation between flow and return line and with integrated hydralic separation, and the bypass fuction is easily controled with an adjustment screw. The manifold has a high class insulation shell according to EnEV2014.
Features:
- Manifold with optional function for hydraulic separation easily set with a screw
- Manual air-venting which allows 90/180/270/360⁰ mounting of the unit
- Installation of temperature sensor in connection for air vent valve possible
- Two incoming ports for supply where 1 is plugged to avoid unnecessary piping
- Clean appearance
Technical Specifications:
| Reference | GMB631 |
| Connections to system | G 1″ |
| Connections from heat source | G 1″ |
| Connections Air vent valves | G 3/8″ |
| No. of circulation units | 2 – 3 |
| with hydraulic separator | Yes |
