Description

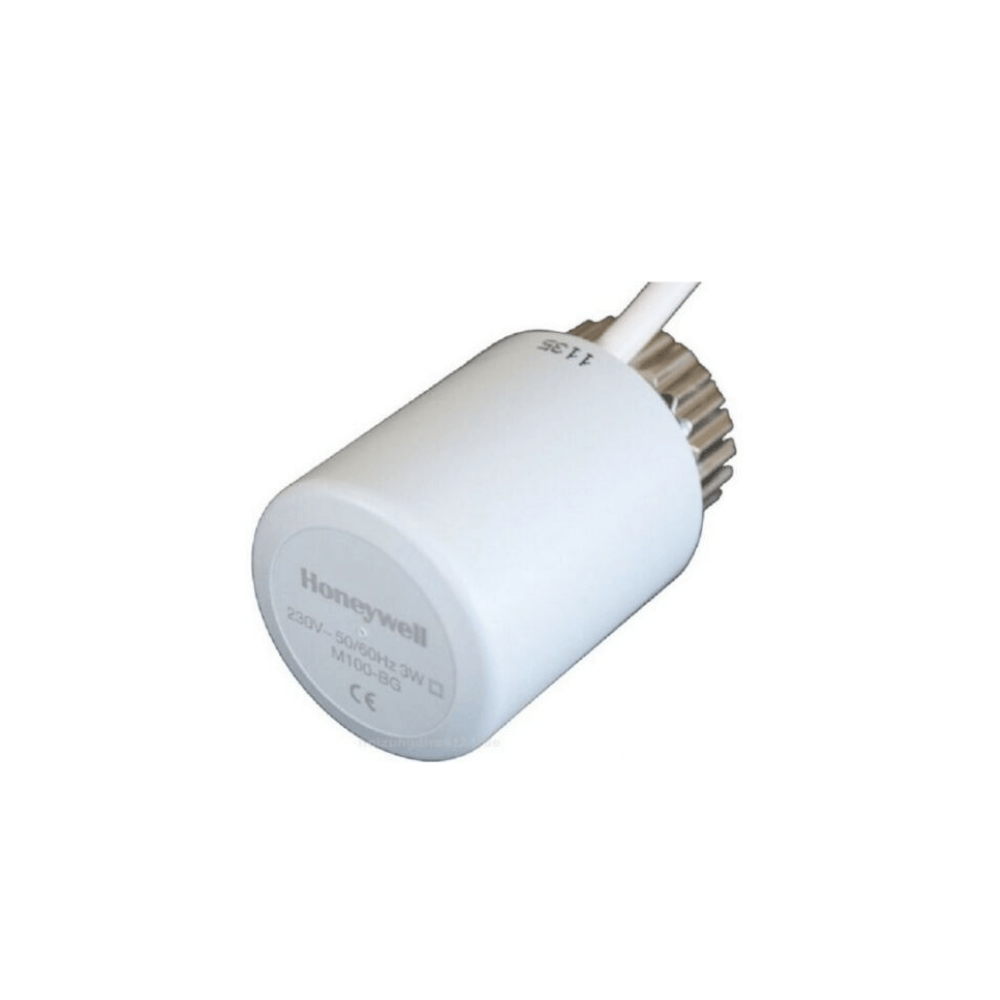

Honeywell Home M100-BG Thermal Actuator
Technical Properties
| Medium Type |
Water or water-glycol mixture according to VDI 2035 |
| Connection of accessories |
Side connections |
| Max. delta P |
400 kPa |
| Pre-setting |
Yes |
| Media temp. (Degrees) |
-10 … 120 C |
| Materials |
Valve housing made of dezincification-resistant brass; Sealings made of EPDM; SafeConTM pressure test valves made of brass; Handwheel with scale and Cover cap made of plastic |
| Place in installation |
Return |
| Valve Control Function |
Pressure Independent PICV |
| Automatic balancing support |
Yes |
| Features |
- Automatic balancing of differential pressure
- Precise pressure independent flow performance
- Highest energy saving potential due to efficient energy transfer and minimised pump speed
- Integrated measuring possibility to find the optimal setpoint for the pump
- Reduced movements of actuators as pressure fluctuation do not influence the required temperature
- No complex calculation needed for selection
- No balancing method needed for commissioning
- Wide range of application
- Sizes DN15 up to DN250
- Various versions to support standard flow rates as well as low flow and high flow needs
- Covers two functions in one valve which reduces mounting costs
- Easy commissioning
- Presetting with visual flow scale at the valve
- Presetting by hand without the need of tools
- Presetting possible even when the system is running and an actuator is already mounted
- Can balance a system even if only some parts of a building are in operation
- Maintenance friendly
- Emergency shut-off function with plastic cap not for permanent use
- Measuring possibility for problematic applications
|
Click here to view the Technical Sheet.
