Description
Intergas HRE & ECO RF 4 Year Service Kit

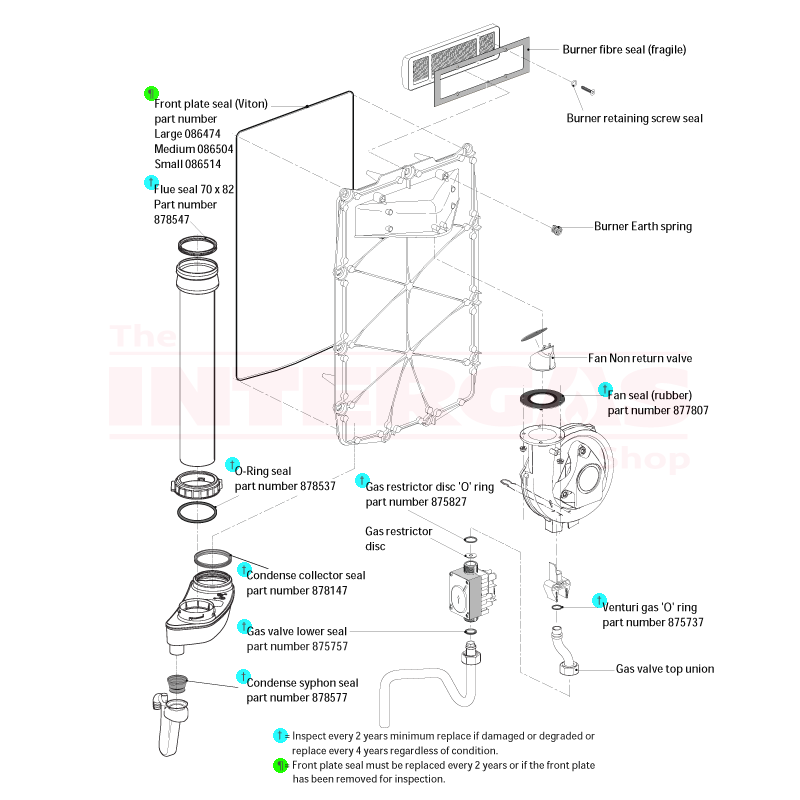

Intergas HRE & ECO RF 4 Year Service Kit comprises of all the items highlighted in blue on the exploded diagram and fits the following Intergas boilers:
- Intergas HRE Compact 18 OV (Small)
- Intergas HRE Compact 24 OV (Medium)
- Intergas HRE Compact 30 OV (Large)
- Intergas HRE Compact 18 SB (Small)
- Intergas HRE Compact 24 SB (Medium)
- Intergas HRE Compact 30 SB (Large)
- Intergas HRE Compact 40 SB (Large)
- Intergas HRE Combi Compact 24/18 (Small)
- Intergas HRE Combi Compact 28/24 (Medium)
- Intergas HRE Combi Compact 36/30 (Large)
- Intergas HRE Combi Compact 36/40 (Large)
- Intergas ECO RF 24 (Small)
- Intergas ECO RF 30 (Medium)
- Intergas ECO RF 36 (Large)

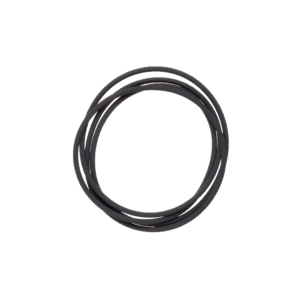

NOTE: If you do not want a Front Plate Seal, choose ‘No – Do Not Send Front Plate Seal’ from the drop down menu above. Otherwise, select the correct seal kit you require. The Intergas 4 Year Service Kit comprises of 1x Intergas Condensate Trap Grommet (878577), 1x Intergas Condensate Collector Inner Seal 76mm Ø (878147), 1x Intergas Flue Pipe O-Ring Seal 68mm x 4mm (878537), 1x Intergas Flue Pipe Inner Seal Ring 70mm x 82mm (878547), 1x Lower Gas Valve Seal (875757), 1x Gas Restrictor Disc O-Ring (875827), 1x Venturi Gas O-Ring (875737) & 1x Fan Seal (877807).
