Description
Heat Pump Specifications
| Nominal capacity | 10.1kW |
| Compressor type | Rotary piston |
| Refrigerant type | R290 |
| Refrigerant volume | 1.3kg |
| Minimum flow rate required | 17.92 L/m |
| Warranty | Min 2 years* |
Product Details
| Product code | 8000049518 |
| Pro & Plus interface unit code (sold separately) | 8000044872 |
| Flow temp max | 75°C |
| Flow temp min | 20°C |
| Supply | 220–240V |
| Max sound power level | 59.9 dB(A) |
Product Dimensions
| Height | 1480mm |
| Width | 1100mm |
| Depth | 450mm |
| Net weight | 206kg |
Manufacturer Listed COP’s (EN-14511)
| A-7°C/W35°C | 2.72 |
| A2°C/W35°C | 4.40 |
| A7°C/W35 (DT=5K) | 5.39 |
| A-7°C/W55 | 1.98 |
| A7°C/W55 | 3.12 |

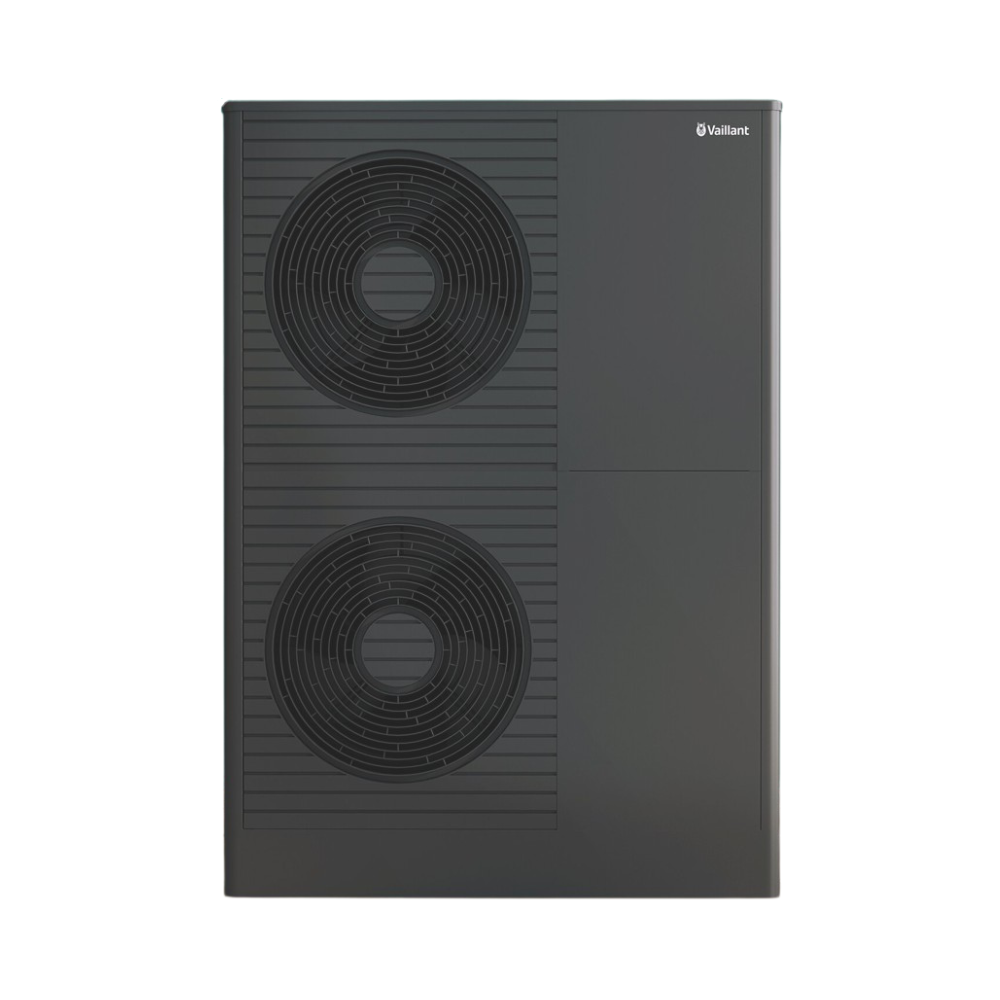

Vaillant aroTHERM Plus 12kW – Latest Generation R290 Monobloc Heat Pump
Key Features
- Low noise operation from approx. 50 dB(A)
- High efficiency with ErP ratings up to A+++
- 75°C flow temperature – ideal for radiator systems and retrofits
- Natural R290 refrigerant with extremely low GWP of 3
- Compatible with uniTOWER, hydraulic modules and uniSTOR cylinders
- Smart‑grid ready (SG‑ready) and PV‑compatible
The Vaillant aroTHERM Plus 12kW is the highest‑output model in the aroTHERM Plus range, designed for larger homes, high heat‑loss properties, and systems requiring strong hot water performance. Using natural R290 refrigerant, it delivers excellent efficiency, ultra‑low environmental impact, and high flow temperatures suitable for radiator‑based systems and hybrid configurations.
Its compact monobloc design simplifies installation and removes the need for F‑Gas handling. Despite its higher capacity, the 12kW model maintains low acoustic output, making it suitable for detached homes, rural properties, and noise‑sensitive areas.
The aroTHERM Plus integrates seamlessly with Vaillant controls such as sensoCOMFORT and sensoAPP, and pairs perfectly with uniSTOR heat pump cylinders for a complete, high‑performance system.
High Performance
The 12kW model delivers strong output even in colder conditions, with flow temperatures up to 75°C. This makes it suitable for radiator‑based systems, hybrid setups, and properties with higher domestic hot water demand. Legionella protection is achieved without immersion heaters, improving efficiency and reducing running costs.
Energy Efficiency
With a SCOP typically in the 4.4–4.7 range (system and site dependent), the aroTHERM Plus 12kW offers excellent seasonal performance for larger properties. It is PV‑ready and SG‑ready, enabling integration with smart tariffs and solar PV systems to maximise self‑consumption and reduce operating costs.
Low Noise Operation
The 12kW unit features Vaillant’s advanced acoustic engineering, achieving sound power levels around 50 dB(A). Noise‑reduction modes make planning and siting easier, especially where boundary distances are tight or neighbouring properties are close.
Natural Refrigerant (R290)
The sealed monobloc system uses R290 natural refrigerant, delivering a GWP of just 3. This ensures long‑term compliance with future environmental regulations and offers reduced protection zones for easier siting and installation flexibility.
