Description

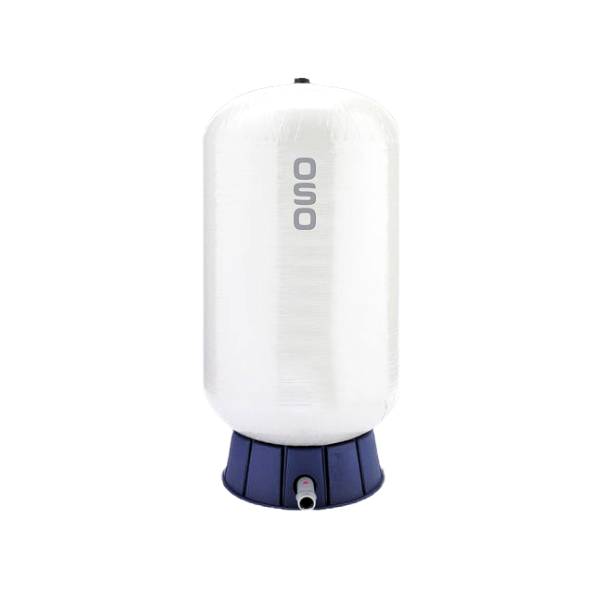

OSO SuperStream 130 Accumulator (11007350)
SUPERSTREAM provides boosted performance for poor mains supplies. Cold water storage using patented accumulator technology guarantees unrivalled pressure and flow rates for multioutlet demand. Traditional unvented cylinders depend on incoming mains pressure and water volume to produce high flow rates. When mains performance is compromised, SuperStream uses stored cold water in a large virgin butyl diaphragm to deliver enhanced performance to hot and cold outlets.
SUPERSTREAM has a composite construction which is resilient and lightweight and is guaranteed for 5 years. The system is typically used in large properties with multiple outlets or commercial situations with high water demand. If static mains pressure is poor, a Charger Pump can be used, contact OSO for details. SuperStream requires an additional purchase of an Upstream fittings kit which is supplied separately in 22 or 28mm to connect to the cold mains and hot water cylinder. 200 and 250 litre models can be installed horizontally in an optional
horizontal cradle.
Why SUPERSTREAM?
• Boost performance for poor mains supply
• No moving parts – silent operation
• Perfect with Delta PowerCyl DCF Cylinder
• 5 year warranty on the tank
• Composite lightweight body
Components:
SUPERSTREAM requires an additional purchase of an Upstream fittings kit supplied separately in 22 or 28mm. 200 and 250 litre models can be installed horizontally in optional
cradle.
Technical Specifications:
| Product | ACC130 – OSI130 |
| Diameter (mm) | 418 |
| Height (mm) | 1227 |
| Weight (kg) | 81 |
| Weight empty (kg) | 16 |
| Capacity 40C (L) | N/A |
| Volume (L) | 65 |
| Thermostat set point (C) | N/A |
| Heat loss-EN 12897 (watt) | N/A |
| Heat loss / 24 hrs – EN 12897 (kWh/day) | N/A |
| AEC (energy consumption) (kW/year) | N/A |
| Energy efficiency (%) | N/A |
| Tapping profile (3XS–XXL) | N/A |
| Energy rating (A+–F) | N/A |
| Primary Heating Power (kW) | N/A |
| Primary coil size (mins) | N/A |
| Immersion Heating Power (kW) | N/A |
| Heat-up time ΔT 55°C Coil (mins) | N/A |
| Heat-up time ΔT 55°C upper element (mins) | N/A |
| Heat-up time ΔT 55°C lower element (min) | N/A |
| Recovery time ΔT 55°C coil 70% (mins) | N/A |
| Recovery time ΔT 55°C upper element 70 (mins) | N/A |
| Recovery time ΔT 55°C lower element 70% (mins) | N/A |
