Description

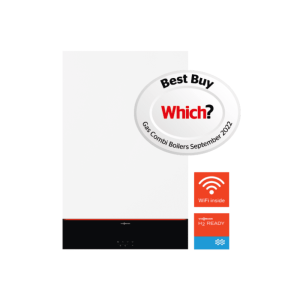

Viessmann Vitodens 200-W Combi Boiler 30kW B2KH (7995316)
*This product does not come with valves. These must be bought separately.
Features:
- Output 1.9 to 30kW
- Up to 12 years warranty
- Energy efficiency class: A
- Durable and efficient thanks to Inox-Radial heat exchanger
- MatriX-Plus burner with Lambda Pro Plus combustion controller for consistently high efficiency and clean combustion
- Innovative operating concept with 7 inch colour touchscreen
- Web-enabled via integral WiFi interface for operation and service via Viessmann apps
- Futureproof: H₂ ready, certified for the combustion of natural gas with 20% hydrogen (H₂)
- Efficient, up to 98% ERP efficiency
- Modulation range 1:17
- Compact dimensions, only 450 mm wide
Product Features:
- Advanced technology: Equipped with a 7″ color touch screen control and outdoor temperature sensor for weather compensation operation.
- Integral Wi-Fi interface: Connect to the internet with ease and access the ViCare app without the need for a Vitoconnect 100.
- High efficiency: With a standard seasonal efficiency of 98% (Hs) [gross cv], the boiler is energy-efficient and has an energy efficiency class A.
- Modulation range: The boiler has a modulation range down to 1:17 for greater flexibility.
Benefits:
- Intuitive controls: The straightforward and user-friendly 7″ color touch screen makes operation extremely convenient.
- Integral WiFi interface: Connect to the internet with ease and access the ViCare app for added convenience.
- High reliability: Thanks to the integral Lambda Pro Plus combustion controller, the boiler is highly reliable in operation.
- Improved efficiency: The new MatriX-Plus burner ensures greater efficiency and lower nitrogen oxide emissions.
- Energy cockpit: Keep track of energy consumption at a glance with the energy cockpit feature.
- Solar thermal integration: The boiler is suitable for integrating with a solar thermal system.
- Fluorescent light guide: The light guide lets you easily check if everything is working properly.
- Large water capacity: With a large water capacity and low cycling frequency, the boiler operates efficiently even when little heat is drawn off.
- Durable and efficient: The Inox-Radial heat exchanger is efficient and durable, with a 10-year warranty.
- Long service life: The MatriX-Plus burner has a long service life thanks to its stainless steel MatriX perforation.
- Lambda Pro Plus combustion controller: The controller is suitable for all gas types, ensuring efficient and clean combustion.
- Quiet operation: The boiler operates quietly thanks to its low fan speed and high efficiency internal pump.
- Latest software: The boiler is supplied with the latest software and programming features for optimal performance.
Standard Delivery:
- Modulating, fan-assisted premix burner with Lambda Pro Plus
- Control unit with integral Wi-Fi interface
- Integral safety valves
- Variable speed high efficiency circulation pump and 3-way valve
- Expansion vessel (10 litres)
- Fully plumbed and wired
- Wall mounting bracket
- Boiler flue connection
- Outside temperature sensor
| Boiler Depth | 360 mm |
| Boiler Height | 700 mm |
| Boiler Type | Combi |
| Boiler Width | 450 mm |
| Brand | Viessmann |
| BTU | 102,364 BTU |
| CALC – Fuel Type | Gas |
| Colour | VitoPearl |
| Compatible with Solar Panels | Not Compatible with Solar Panels |
| Display Type | Touchscreen Display |
| Energy Rating (Heating) | A |
| Energy Rating (Water) | A |
| Filling Loop Supplied | Filling Loop Supplied |
| Fitting Requirements | Must be Fitted by a Gas Safe Registered Installer |
| Fixing Jig Supplied | Fixing Jig Not Supplied |
| Flow Rate (Ltr/Min) | 15.69 Ltr/min |
| Flue Connection Diameter | 60/100 mm |
| Flue Outlet Position | Top Flue Outlet |
| Flue Supplied | Flue Not Supplied |
| Frost Protection | Frost Protection |
| Fuel Type | Gas/LPG |
| Indoor/Outdoor Usage | Indoor |
| Manufacturer Guarantee | 5 Year Manufacturer’s Guarantee (T&Cs Apply) |
| Max. Heat Output CH (Pn) | 25 kW |
| Max. Heat Output DHW (Pn) | 30 kW |
| Model Name/No | 200-W Z020315 |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Product Returns Note | We cannot accept the return of unwanted boilers if the box/packaging has been opened (your statutory rights are not affected). |
| Product Type | Boiler 25kW |
| SAP Seasonal Efficiency | 98 % |
| Sound Pressure Level | 46 dBA |
| Suitable for Underfloor Heating | Suitable for Underfloor Heating |
| Supplier Manufacturer Helpline | 01952 675000 |
| Temperature Range (Heating) | 20-82 °C |
| Temperature Range (Water) | 30-60 °C |
| Total Product Weight | 42 kg |
