Description

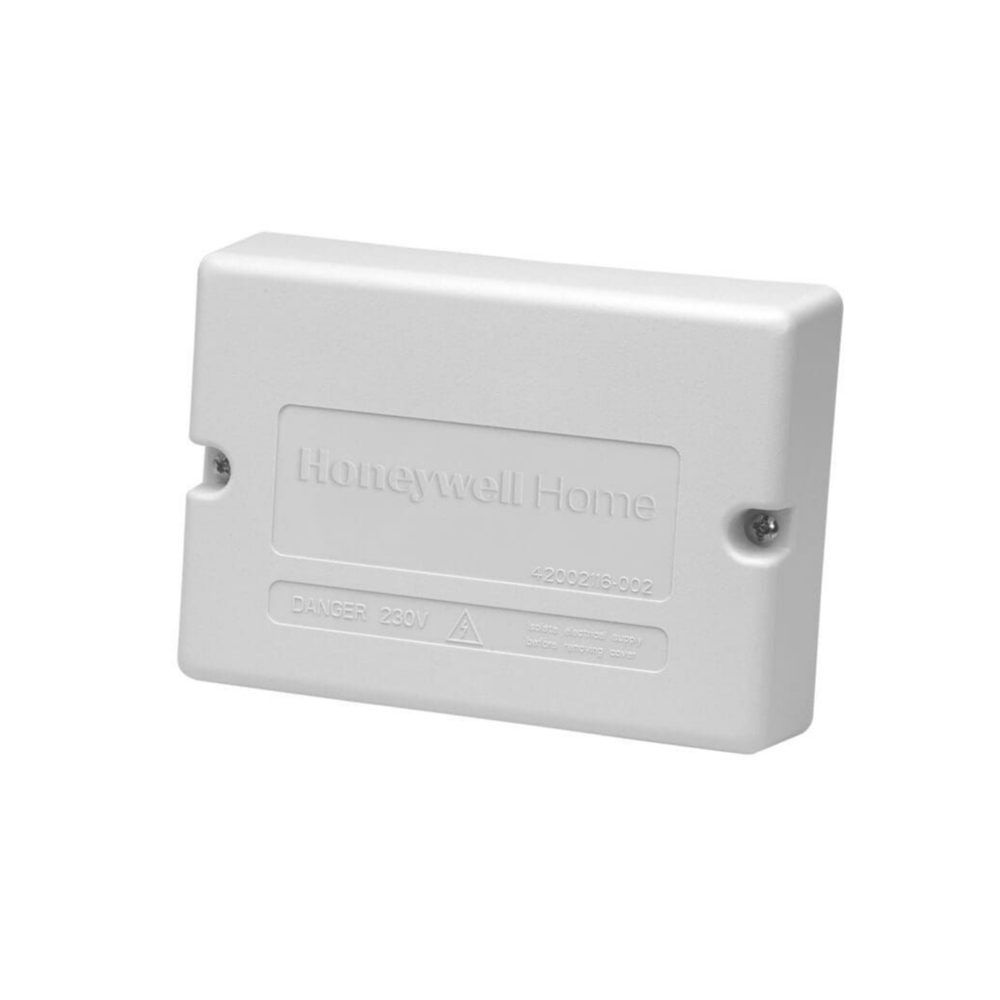

Honeywell Home 10 Way Junction Box (42002116-002)
The Honeywell Home 10 Way Junction Box has been designed to simplify the wiring of Sundial Plan central heating installations. Designed specifically to be used in conjunction with the wiring diagrams provided in the Honeywell Home Wiring Guide, the Honeywell Home 10 Way Junction Box is a universal wiring centre that can be used with any 15 amp rated wiring application.
Key Features:
- Designed to enable compliance with electrical approvals and wiring specifications
- Strain relief on all entries
- Optimised sizing on terminals
- Fully compliant with current Wiring Regulations.
Technical Information:
- Number of Terminals : 10
- Maximum Current of Terminals : 15amp 230V 50Hz
- Cable Clamp Capacity : Up to 8mm2 cable
- Cable Entries : 12 knockouts around all sides
- Fixing : 6 fixing holes in base for no.8 screws
- EC Directive : Conforms to 2006/95/EC
- Dimensions (mm): 147W x 105H x 40D
